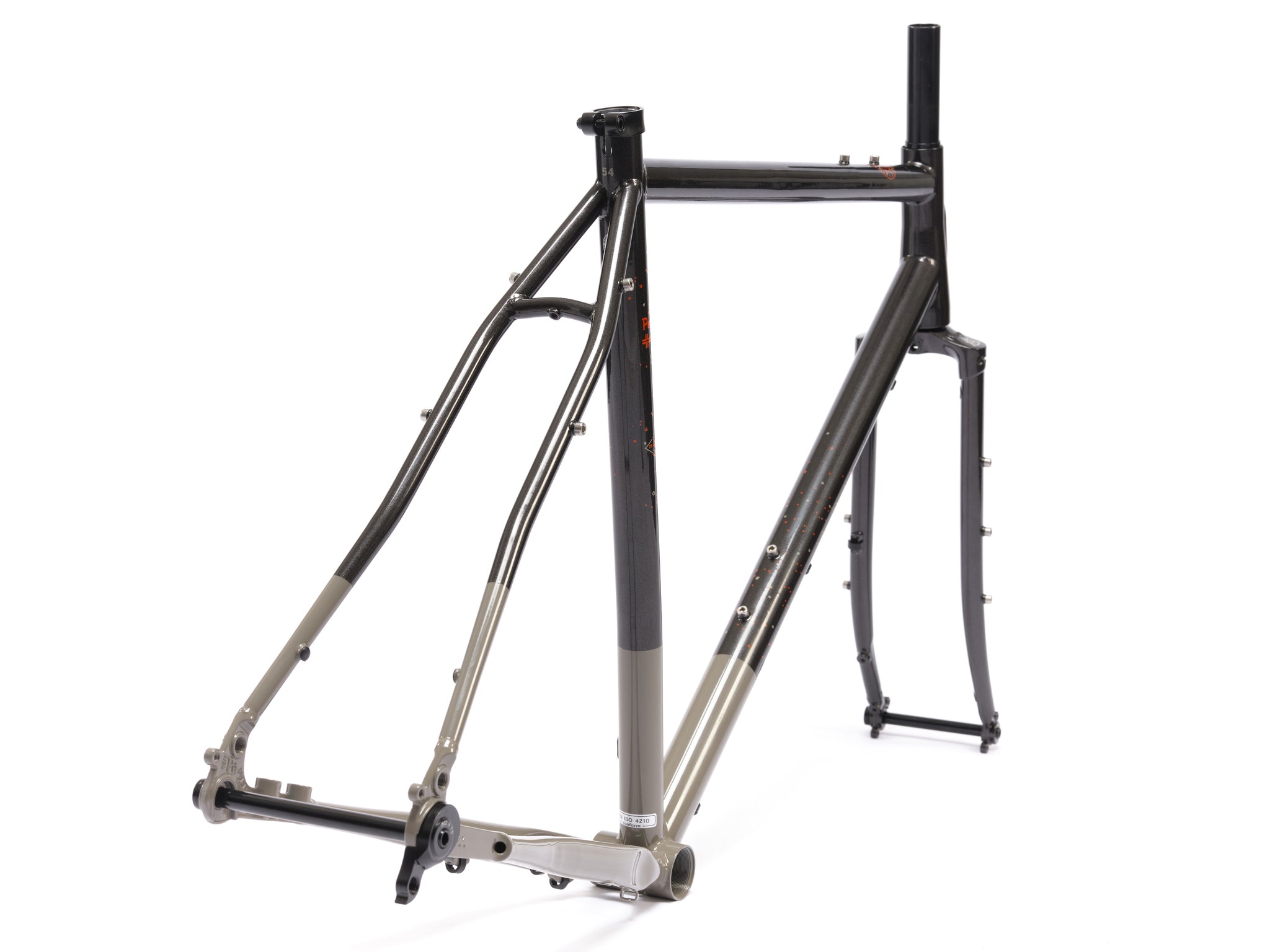

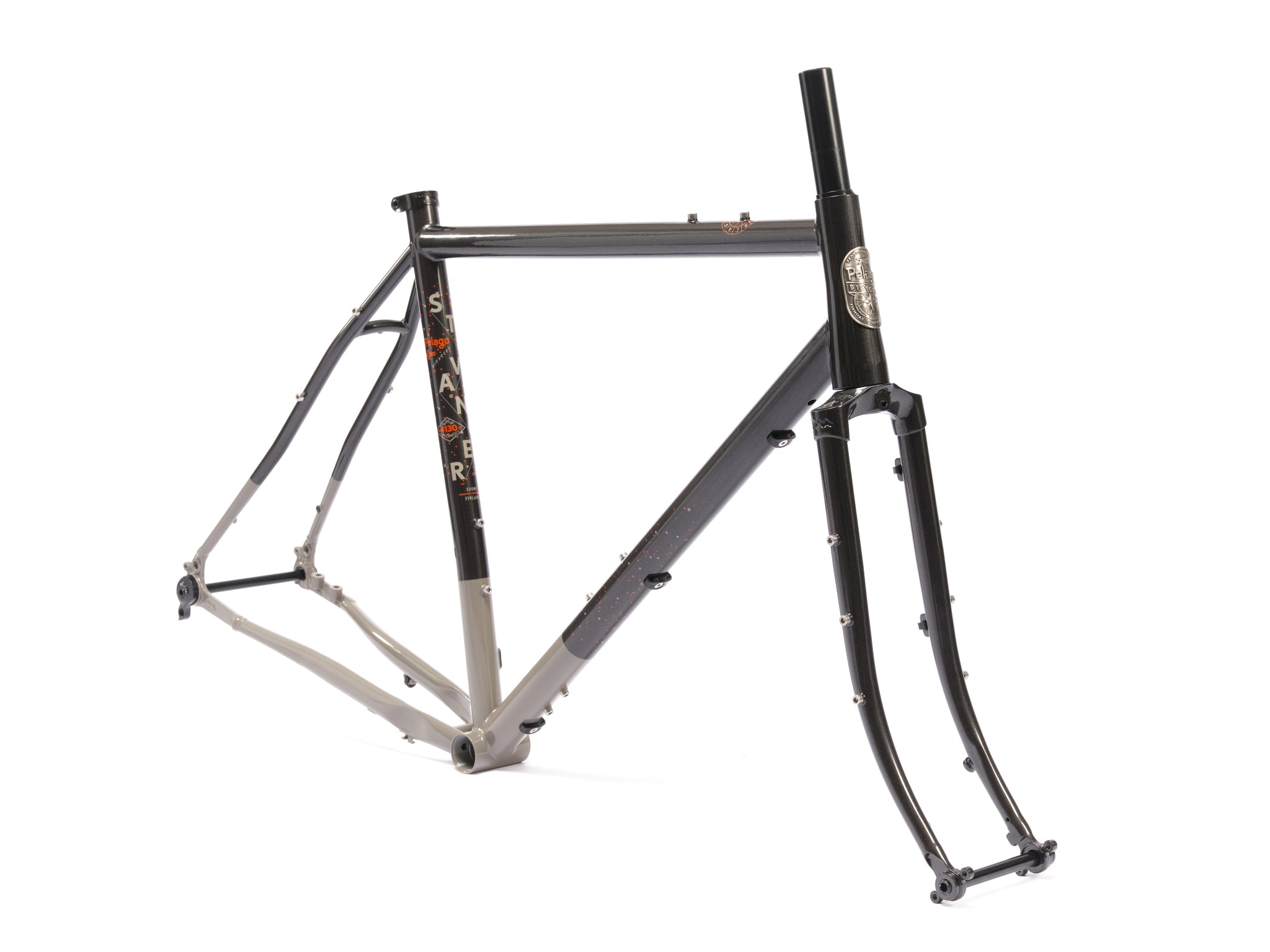

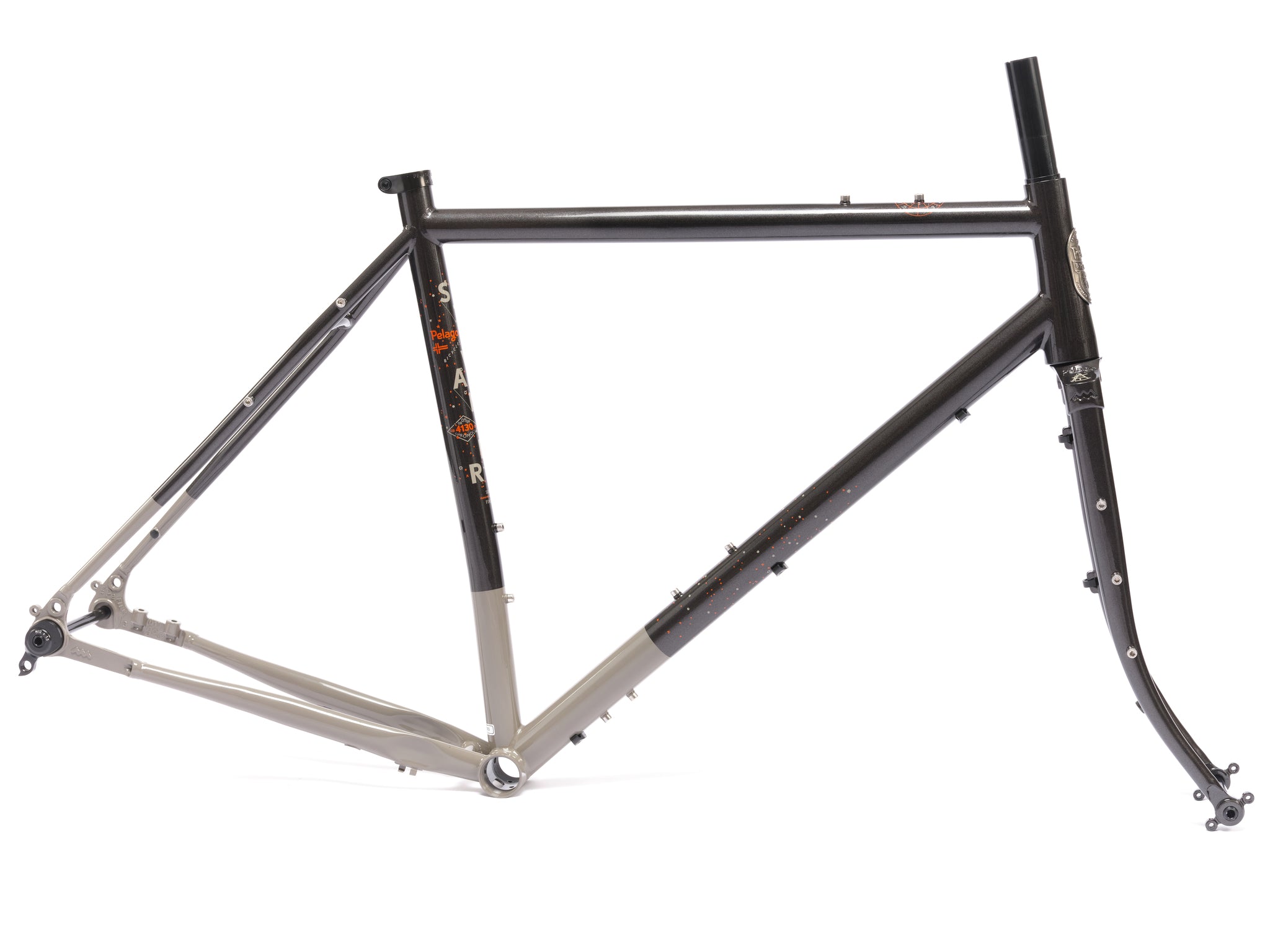

Pelago Stavanger frame set
New Stavanger, now also available as a frame set
The simplest way to describe the completely redesigned Pelago Stavanger is its versatility. The Stavanger is by far the most versatile Pelago bike, fulfilling numerous purposes without compromising on performance.
Compared to the original Pelago Stavanger, the new model offers significantly more features, both visually and in its technical specifications. The size range of the Stavanger has been greatly expanded, so riders from 146 cm to approximately 210 cm tall can now ride this bike comfortably.
The Stavanger frameset comes with a new selection of features, a new color option, and new decals. The bike's design is timeless – just as you'd expect from a Pelago bike.
Many customization options
The new Pelago Stavanger has been enhanced with features we felt were missing from the Stavanger Outback and Stavanger Commuter frames. With a wide range of sizes (for riders from 146 cm to 210 cm), thoughtful details, versatile geometry, and multifunctional features, the Stavanger is the right choice. These multifunctional features include ample tire clearance, generous fender clearance, dropper post compatibility, the option to use a carbon fork, and Di2 compatibility, to name just a few.
The new Stavanger frameset also features thru-axles, as we've moved away from quick-release skewers on this model. The tapered head tube allows for easy installation of a carbon fork, and a wide range of mounting points ensures that water bottles, racks, and fenders stay securely in place. The rigid chromoly frame offers numerous customization options.

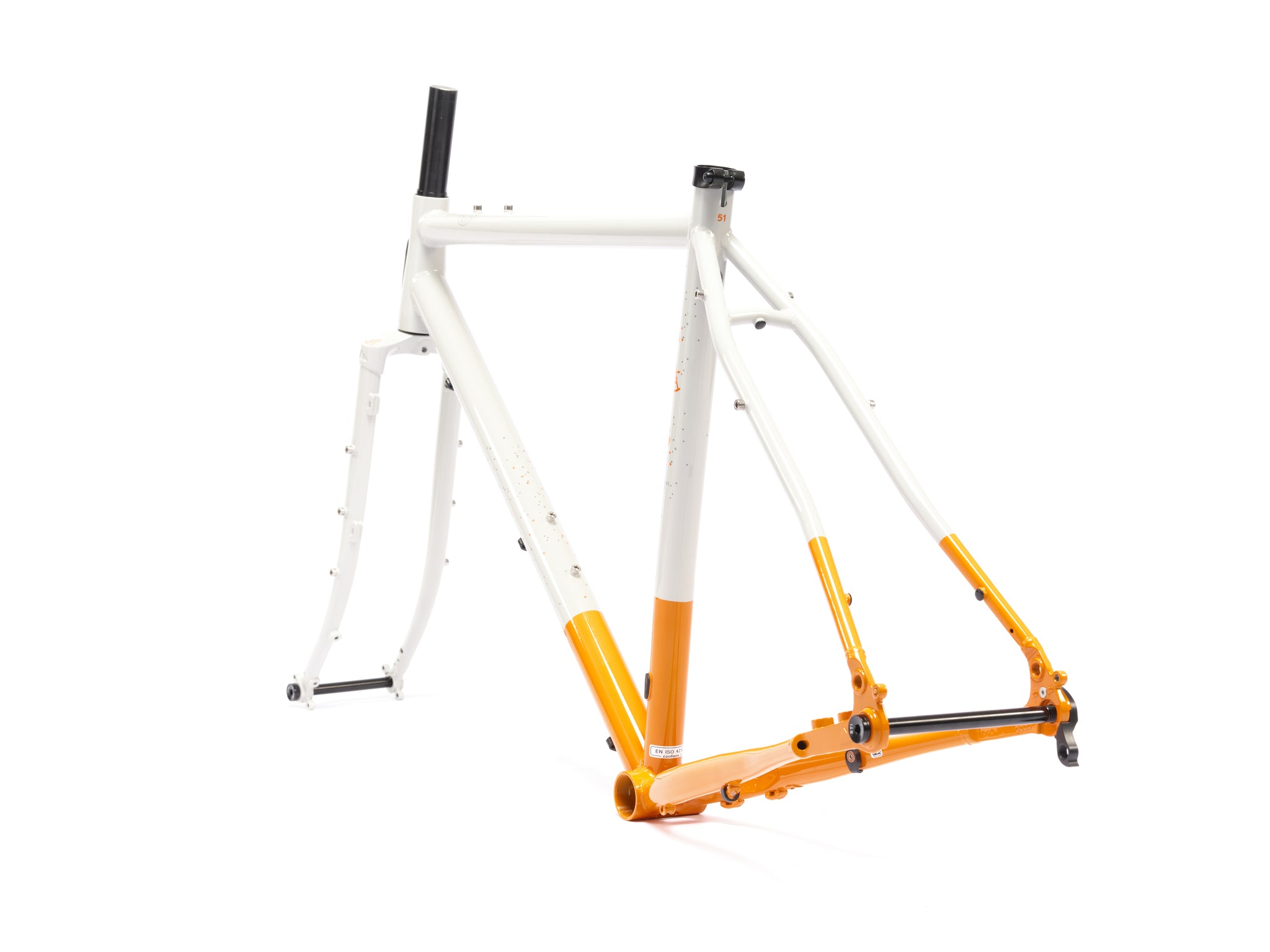

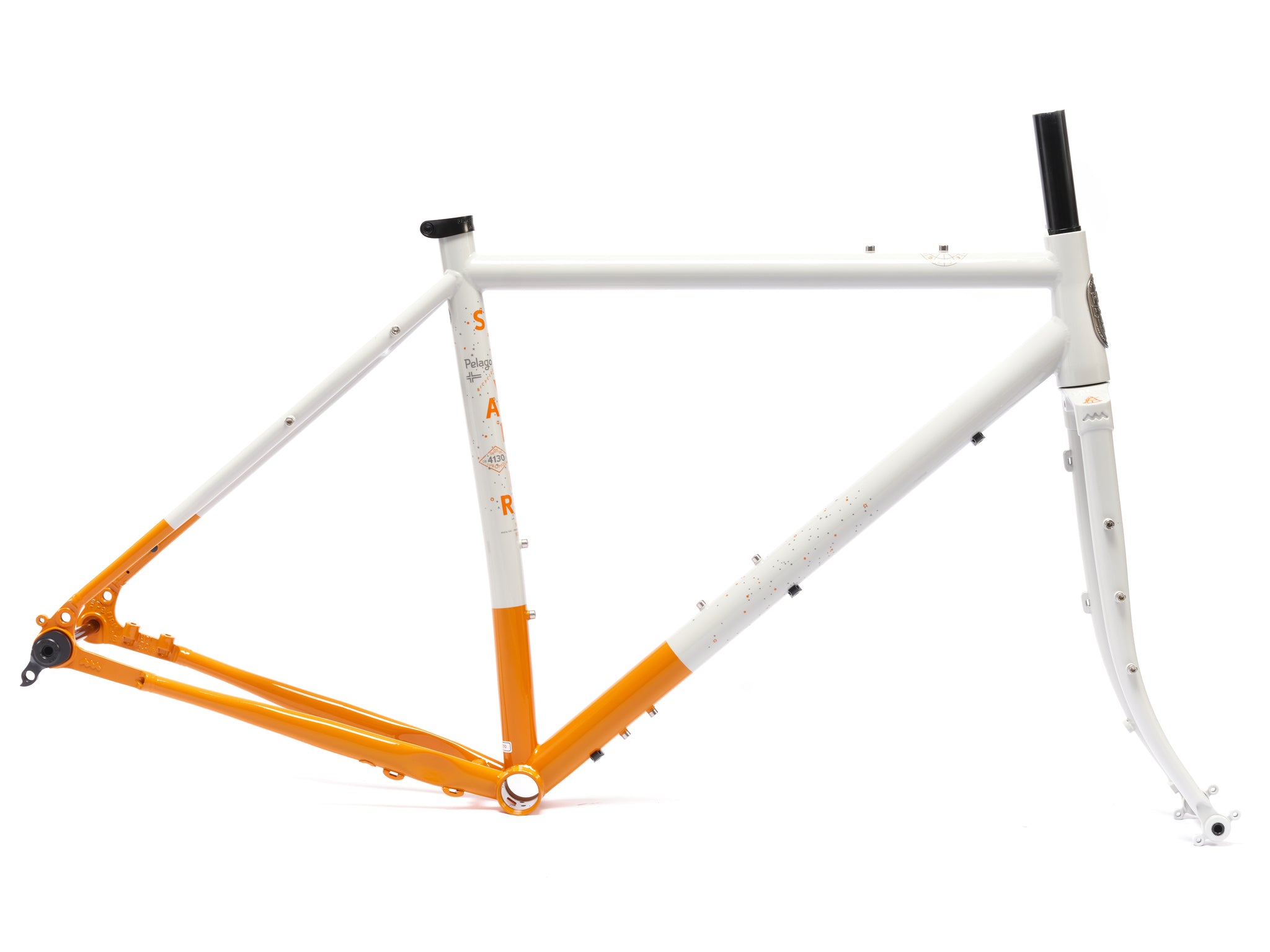

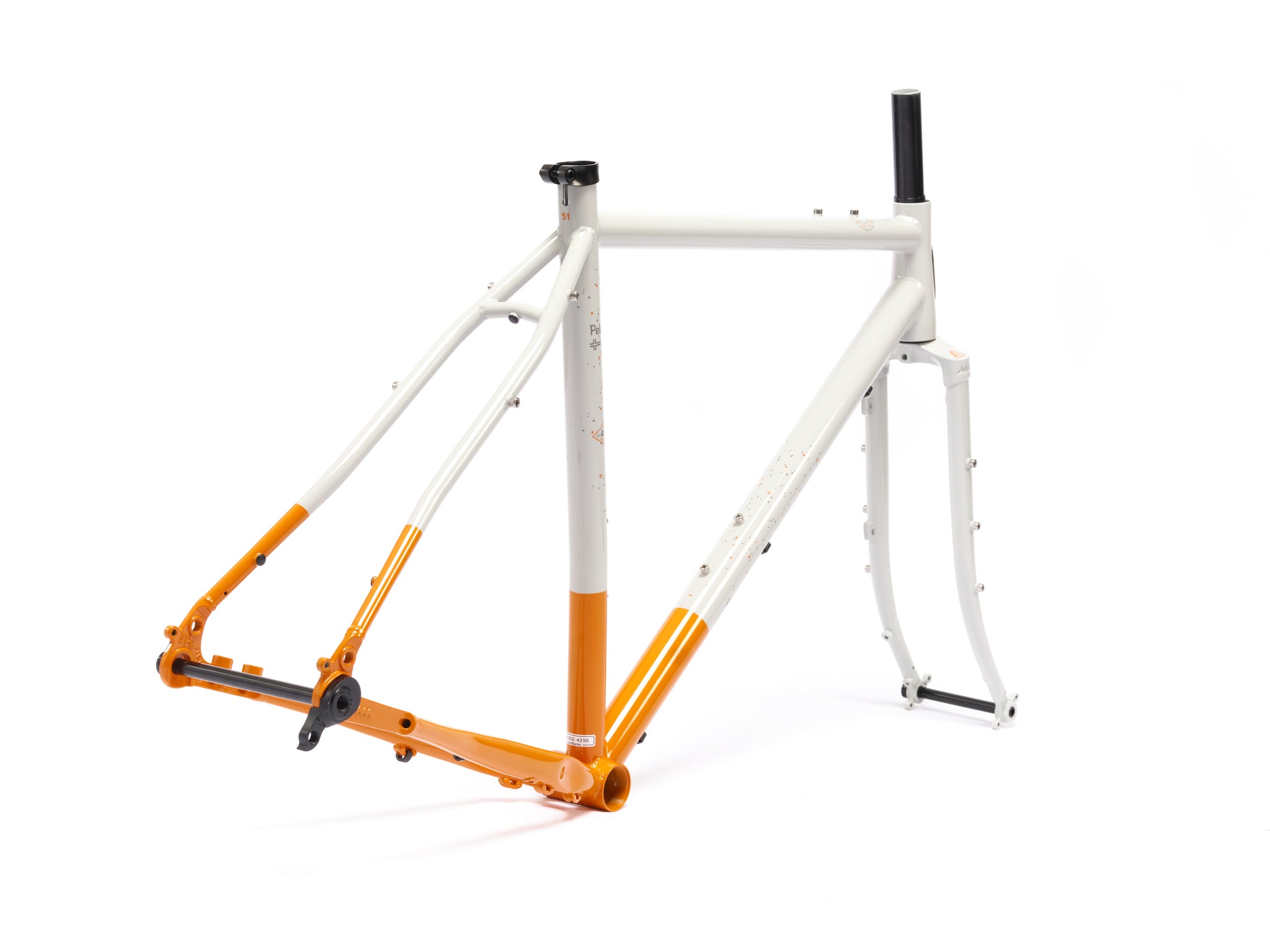

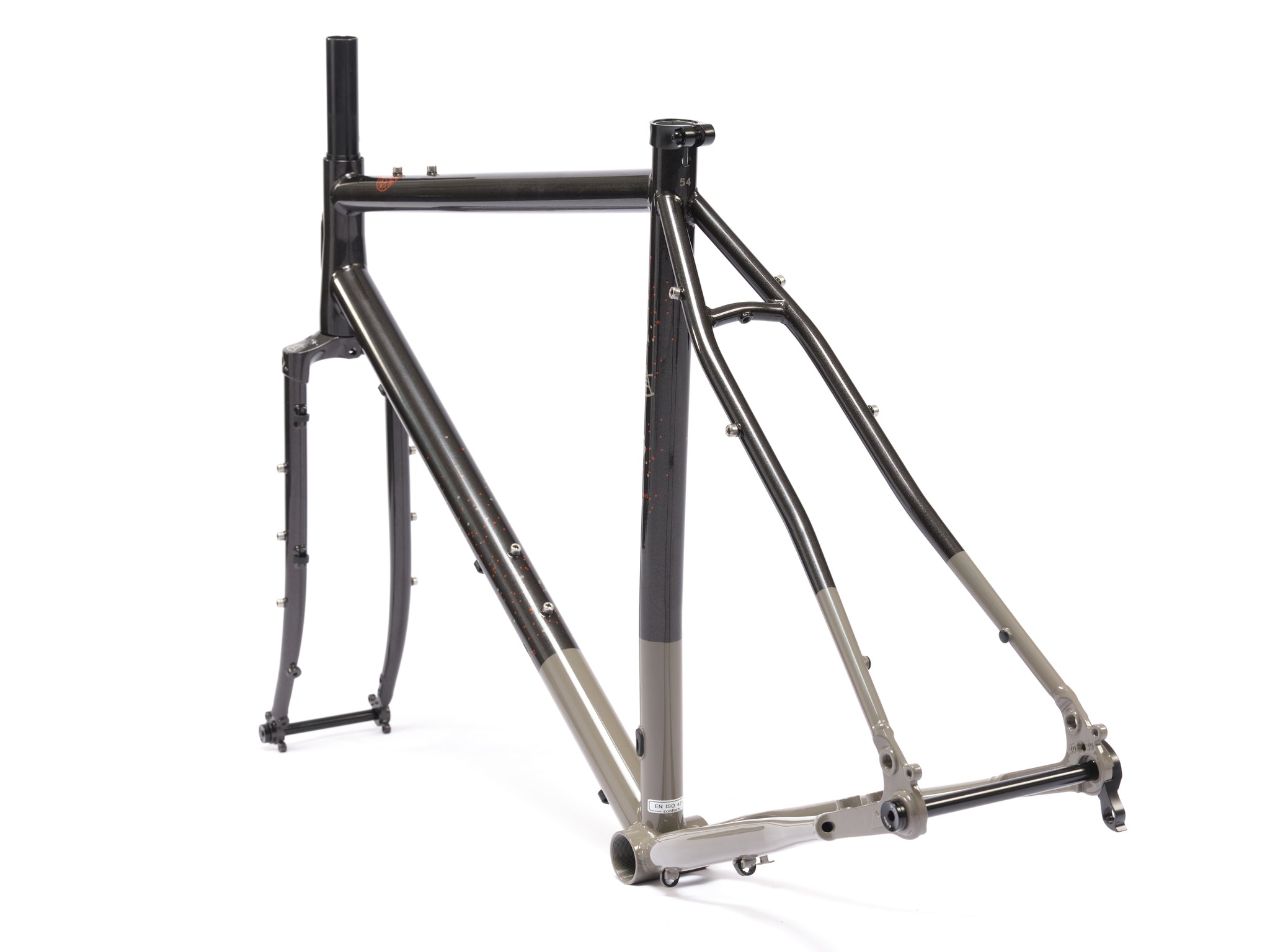

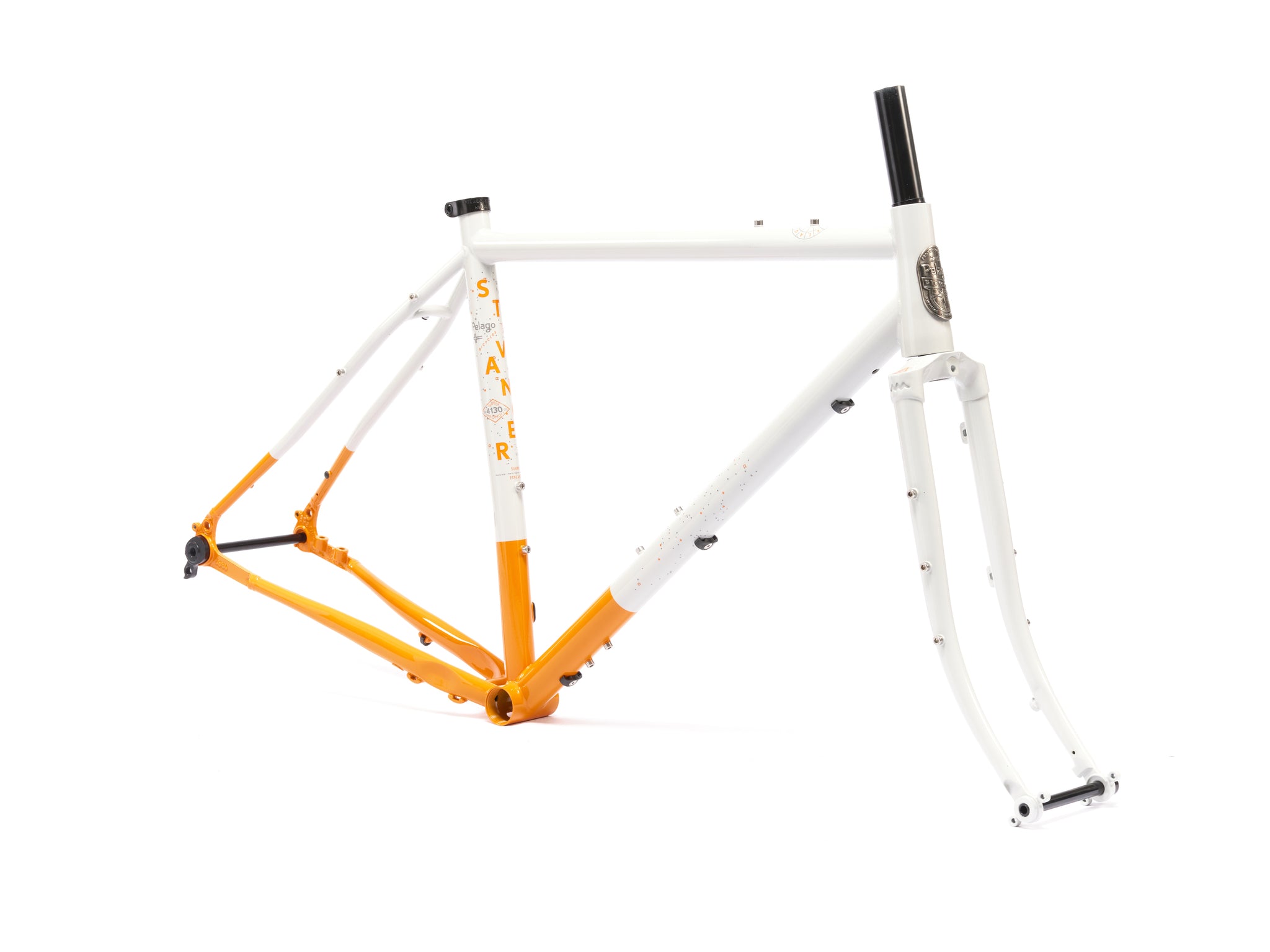

Color: Charcoal Walnut, Gray Terra
Sizes: 42 / 45 / 48 / 51 / 54 / 57 / 60 / 63
Frame: Double-butted, oversized 4130 Cr-Mo tubing, TIG-welded
Fork: 4130 Cr-Mo with cast crown, 58 mm offset
Bottom bracket: 68 mm BSA
Brakes: Flat Mount, up to 160 mm discs
Drivetrain: 1x / 2x (2x compatible with gravel/road wide chainline and max. 48 tooth chainring)

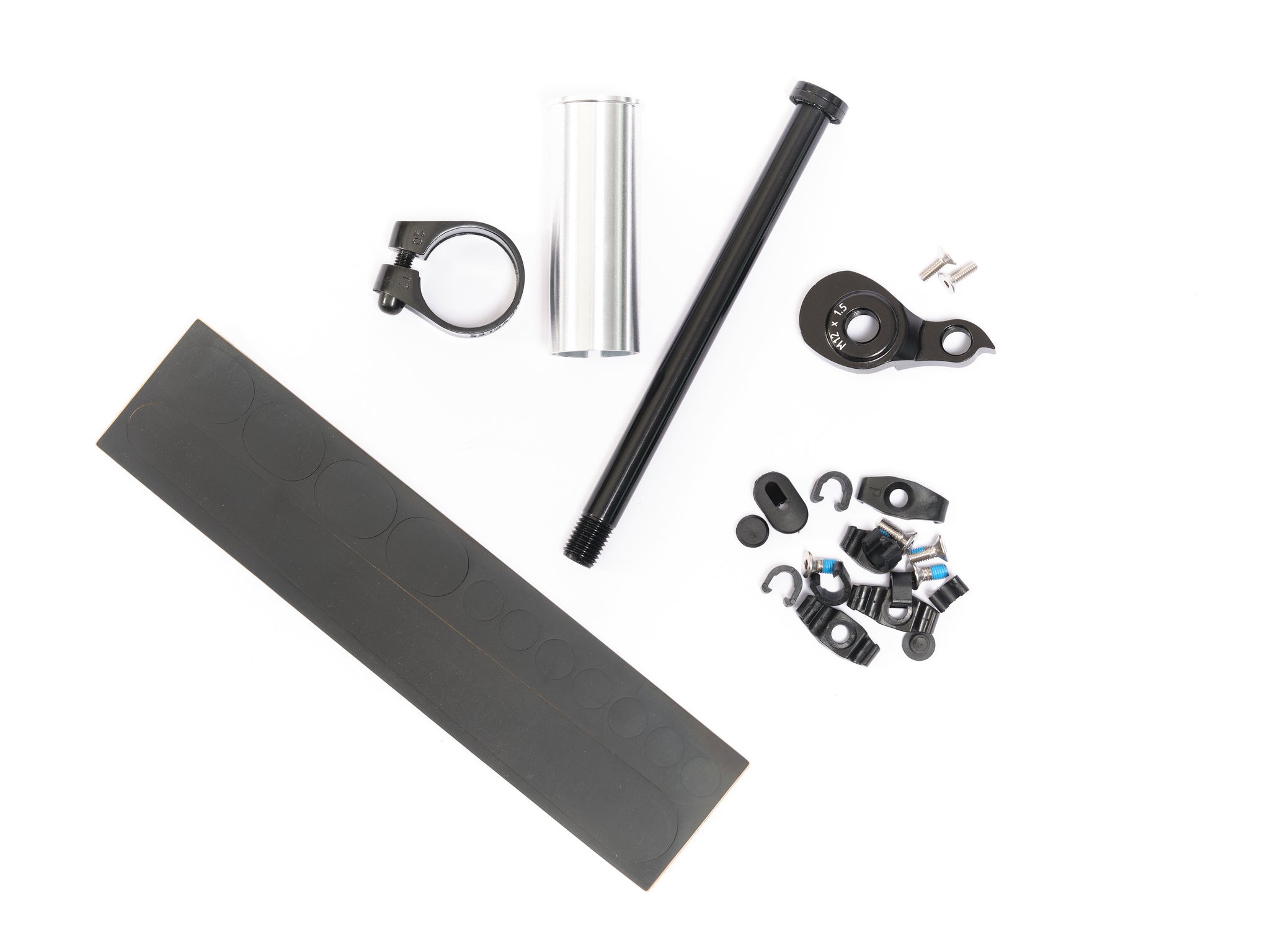

Seatpost: 27.2 mm including reducer sleeve
Tax rate: Top EC34, bottom EC44, not included (specifications separate)
Accessories: Front and rear luggage racks, frame lock, lights, grips, basket
Tire clearance: 45-622 / 50-584 with mudguards, 50-622 / 57-584 without mudguards
Axles: Rear 142/12 mm thru-axle, front 100/12 mm thru-axle

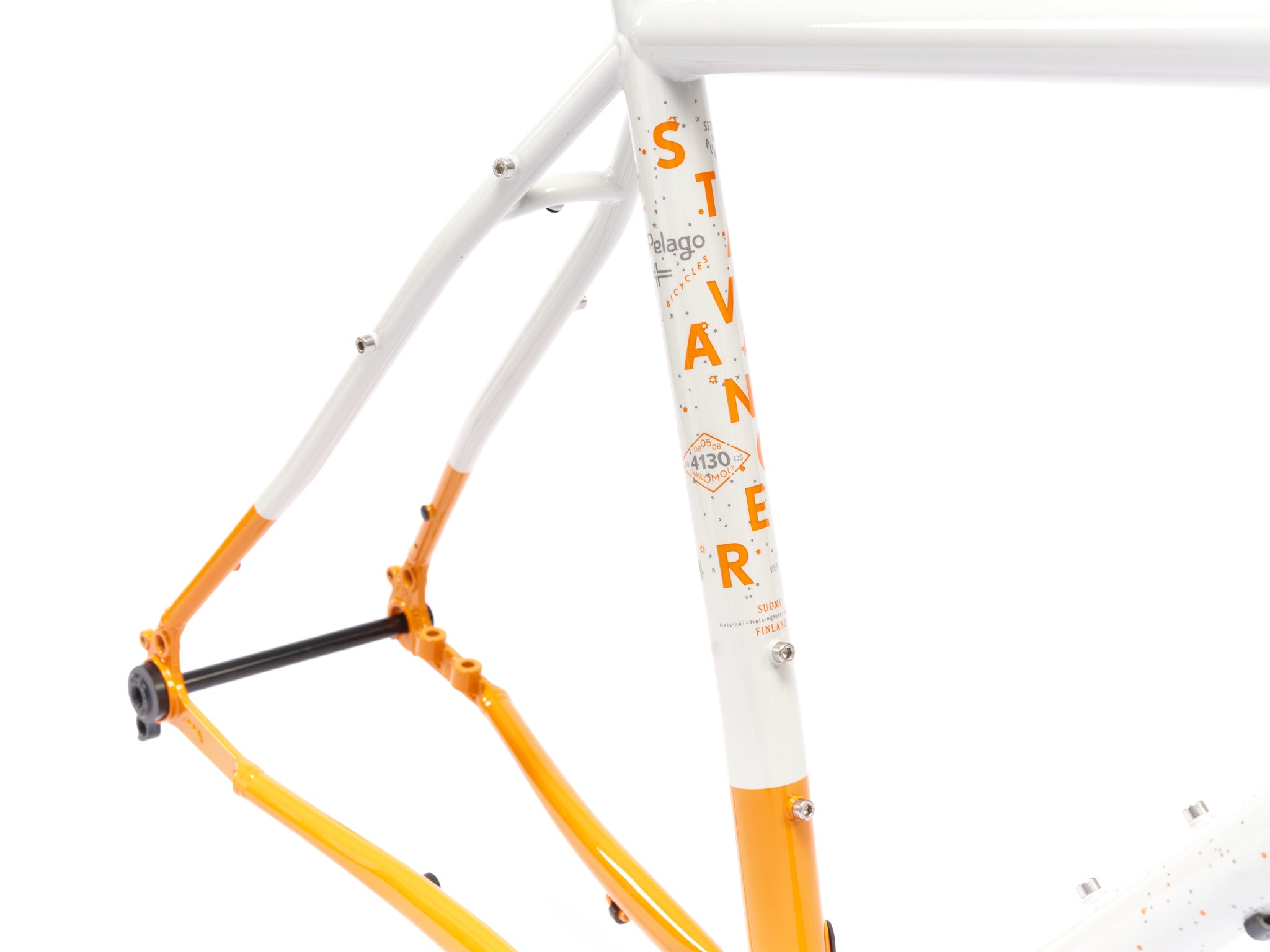

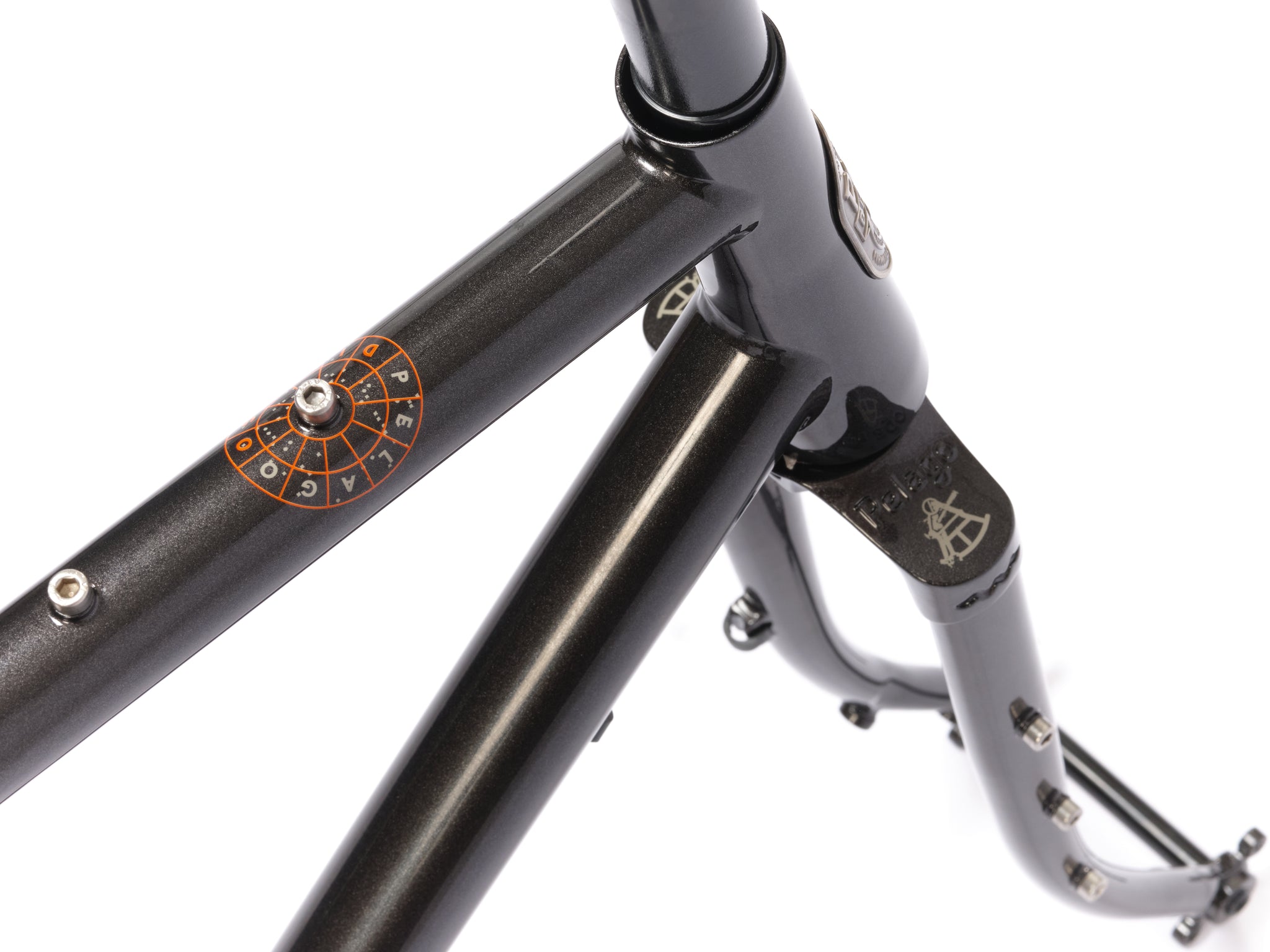

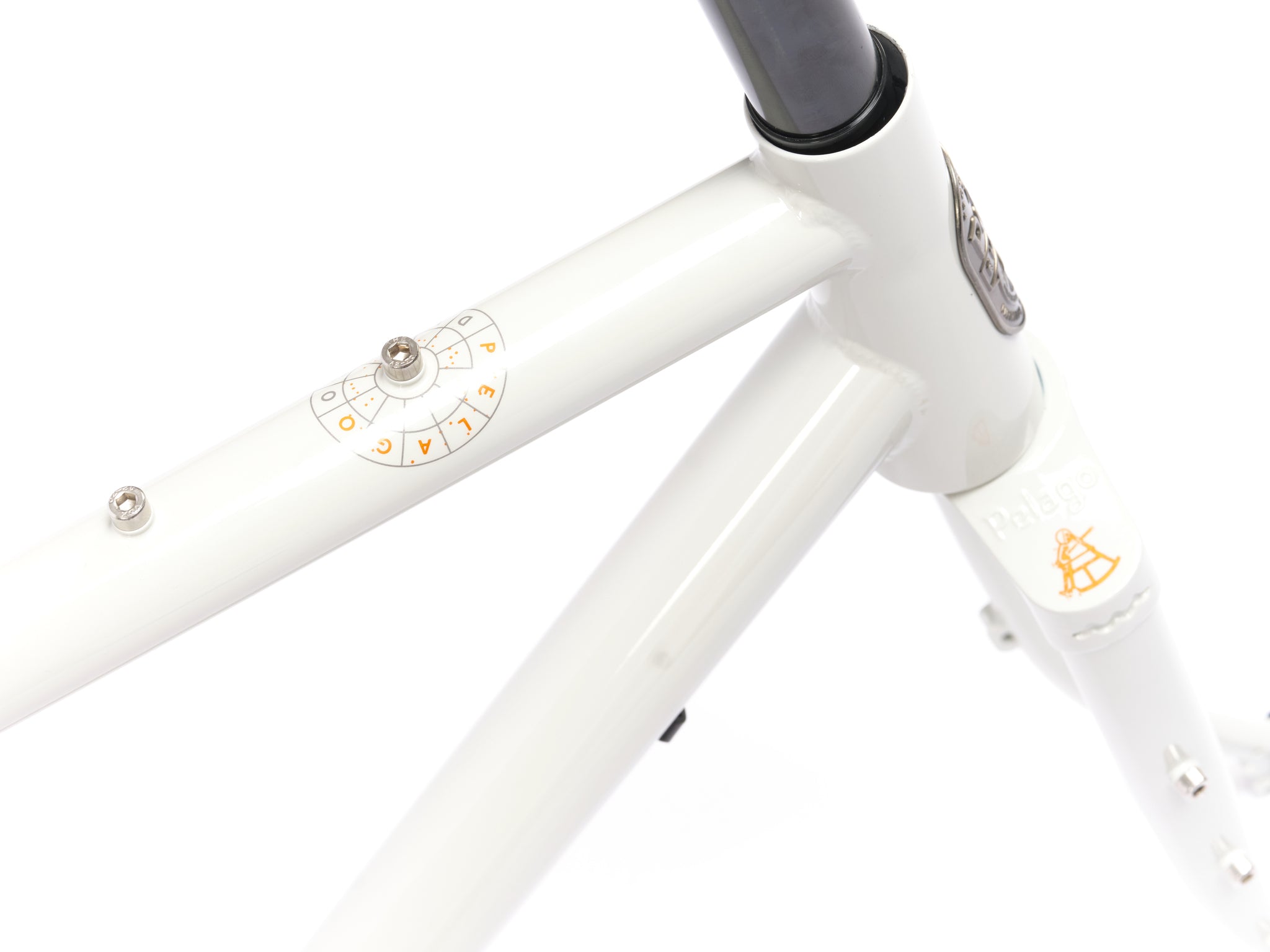

Braze-ons: bottle cage mounts on the seat tube, 2x on the down tube and on the fork, mounts for mudguards, luggage rack and light cable routing
Weight: Frame 2.64 kg (size 54), fork 1.2 kg
